A dispenser kit for every budget
Starter kit
– Controller with motor.
– 2x Syringes each with top, bottom caps.
– 2x Piston holders.
– 2x White pistons. For general purpose use: pastes, adhesives and medium to high viscosity materials.
– 2x Red pistons. Improve pick and place performance and helps to dispense low viscosity fluids and lubricants.
– 1x Coupler for easy fluid transfer between syringes.
– 1x Set of tips. Includes:
- 1x Rubber suction cup for picking up large ICs.
- 2x Rubber needle caps: small and large.
- 2x Conical tips, sizes: 18ga, 20ga and 22ga
- 1x Straight stainless steel tips, sizes: 14ga, 20ga and 22ga
- 1x Stainless steel tips 45deg bent, sizes: 14ga, 20ga and 22ga
Price: $159
Maker kit
– Controller with motor.

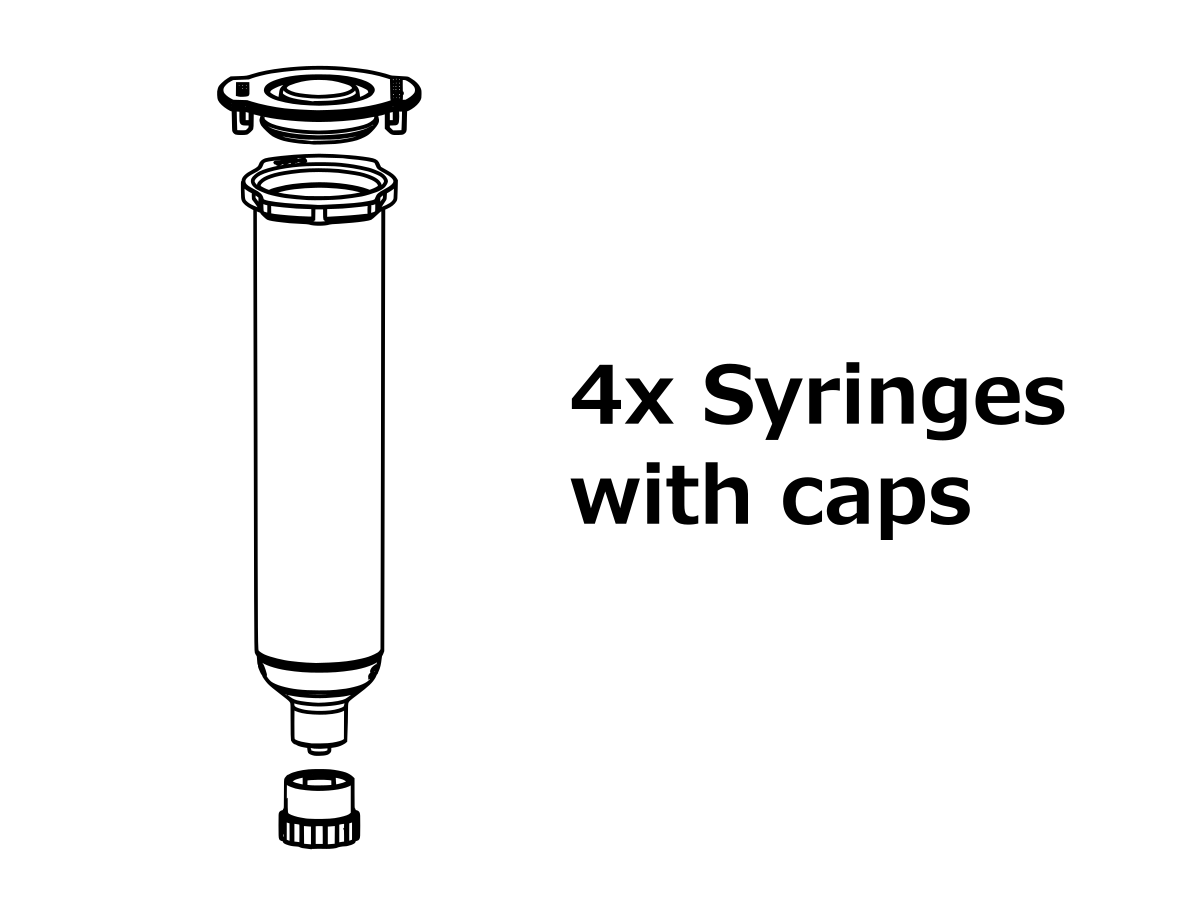

– 4x Syringes each with top, bottom caps.
– 2x Piston holders.
– 4x White pistons.
– 2x Red pistons.

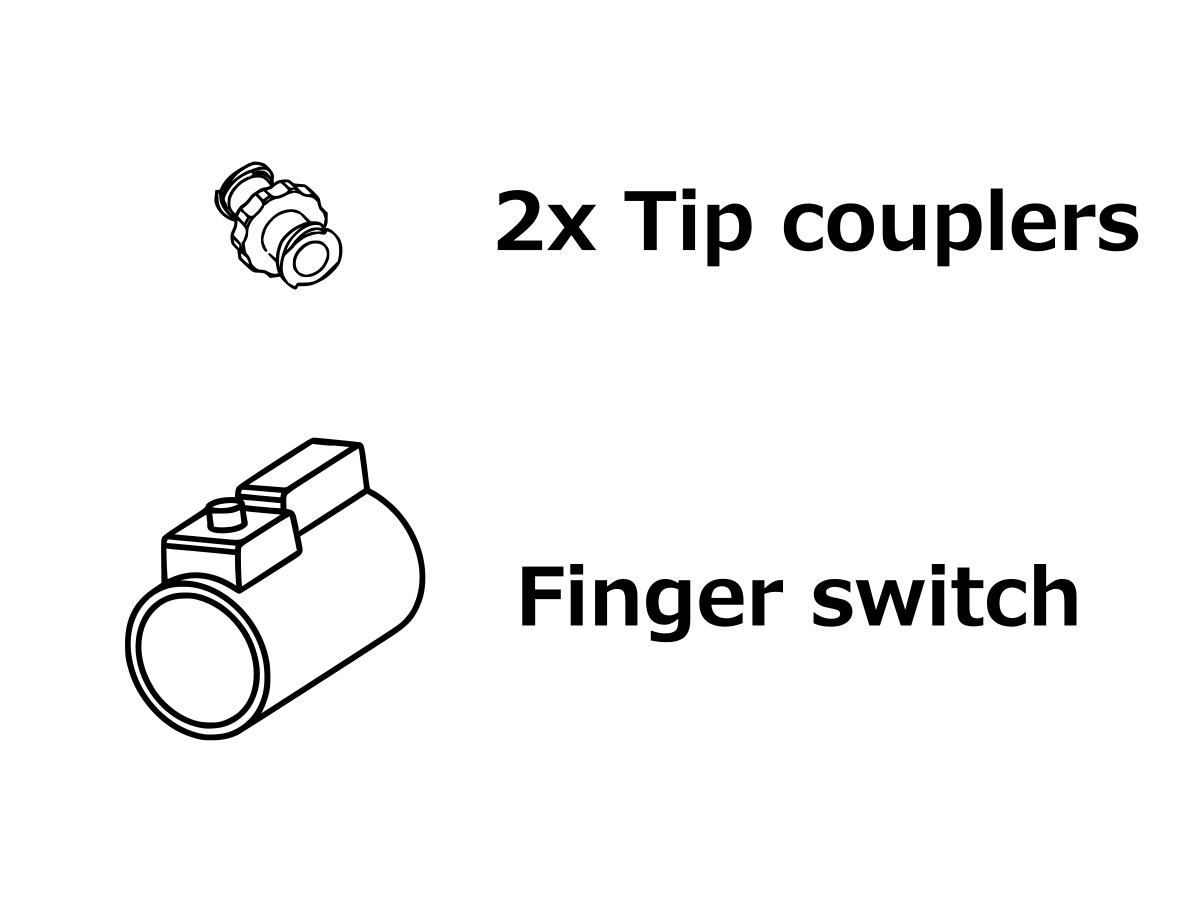

– 2x Couplers.

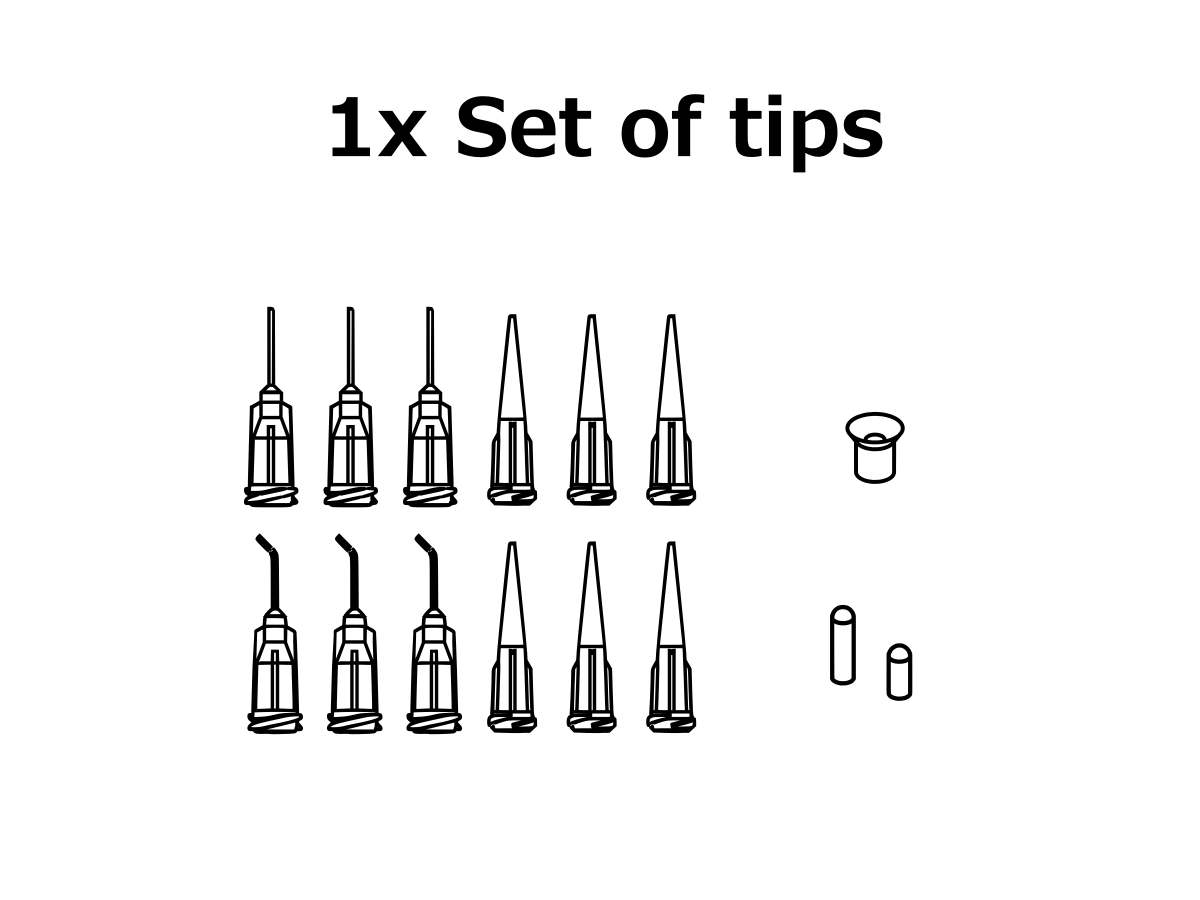

– 1x Set of tips.
– Finger switch.
Price: $186 $177
Advanced kit
– Controller with motor.
– 6x Syringes each with top, bottom caps.
– 4x Piston holders.
– 6x White pistons.
– 2x Red pistons.
– 3x Couplers.
– 2x Set of tips.
– Foot switch.

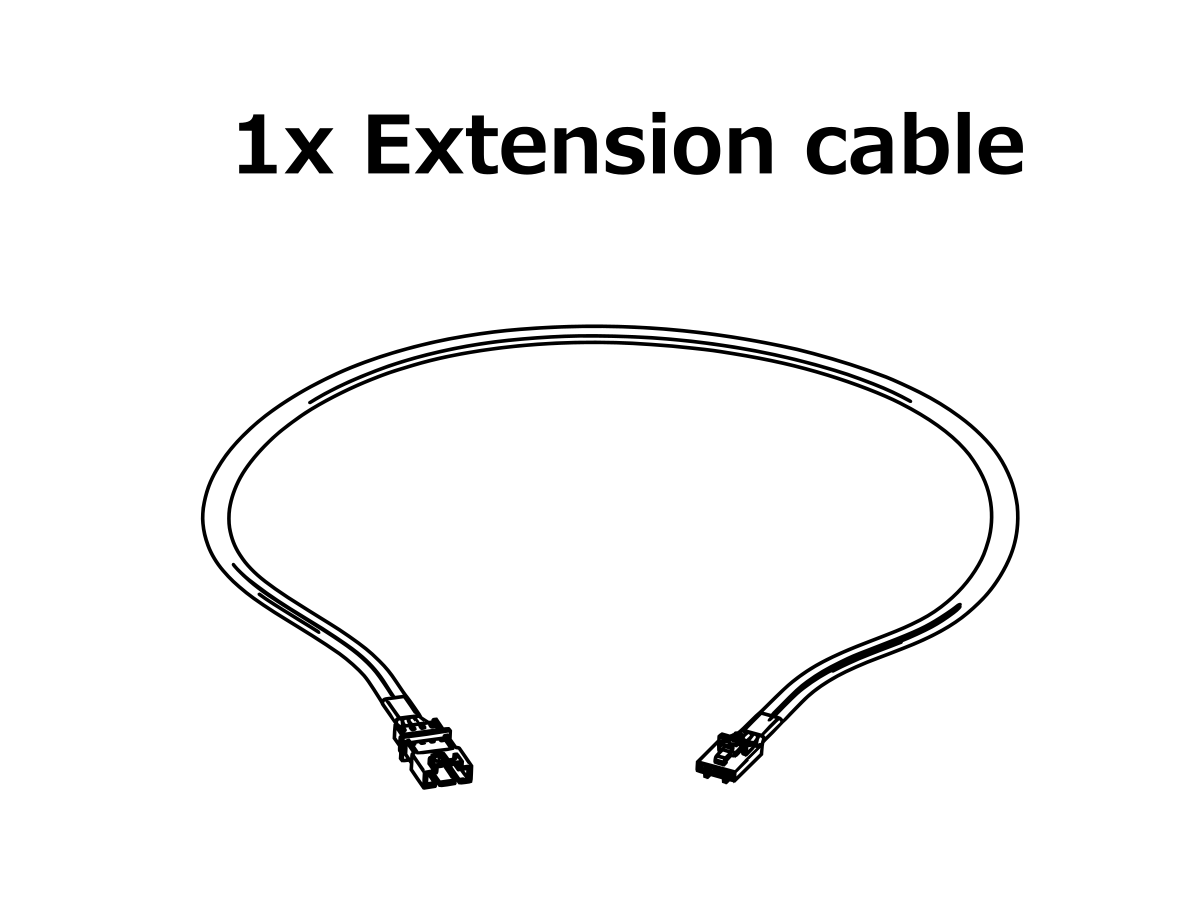

– Extension cable 50cm (20″)
Price: $230 $219
Pro kit
– Controller with motor.

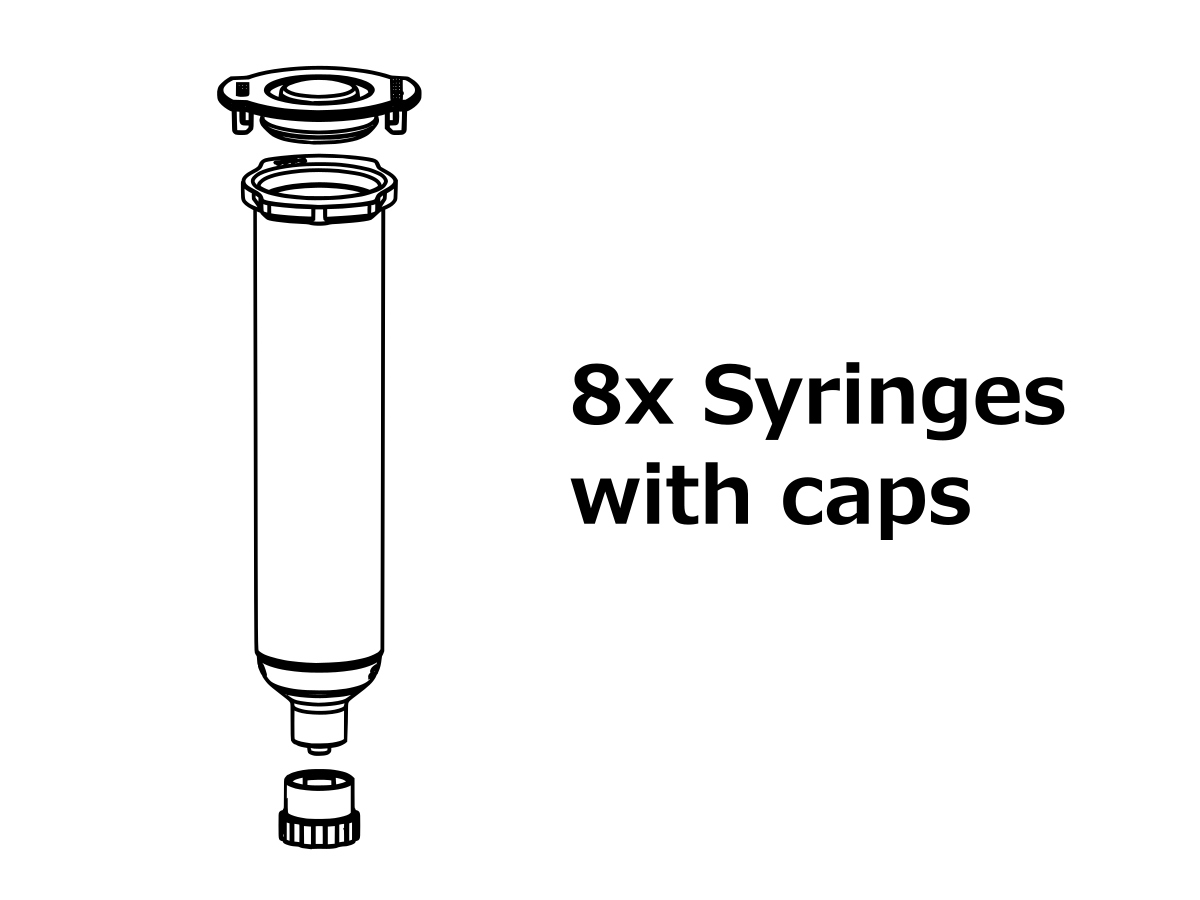

– 8x Syringes each with top, bottom caps.
– 6x Piston holders.
– 8x White pistons.
– 4x Red pistons.

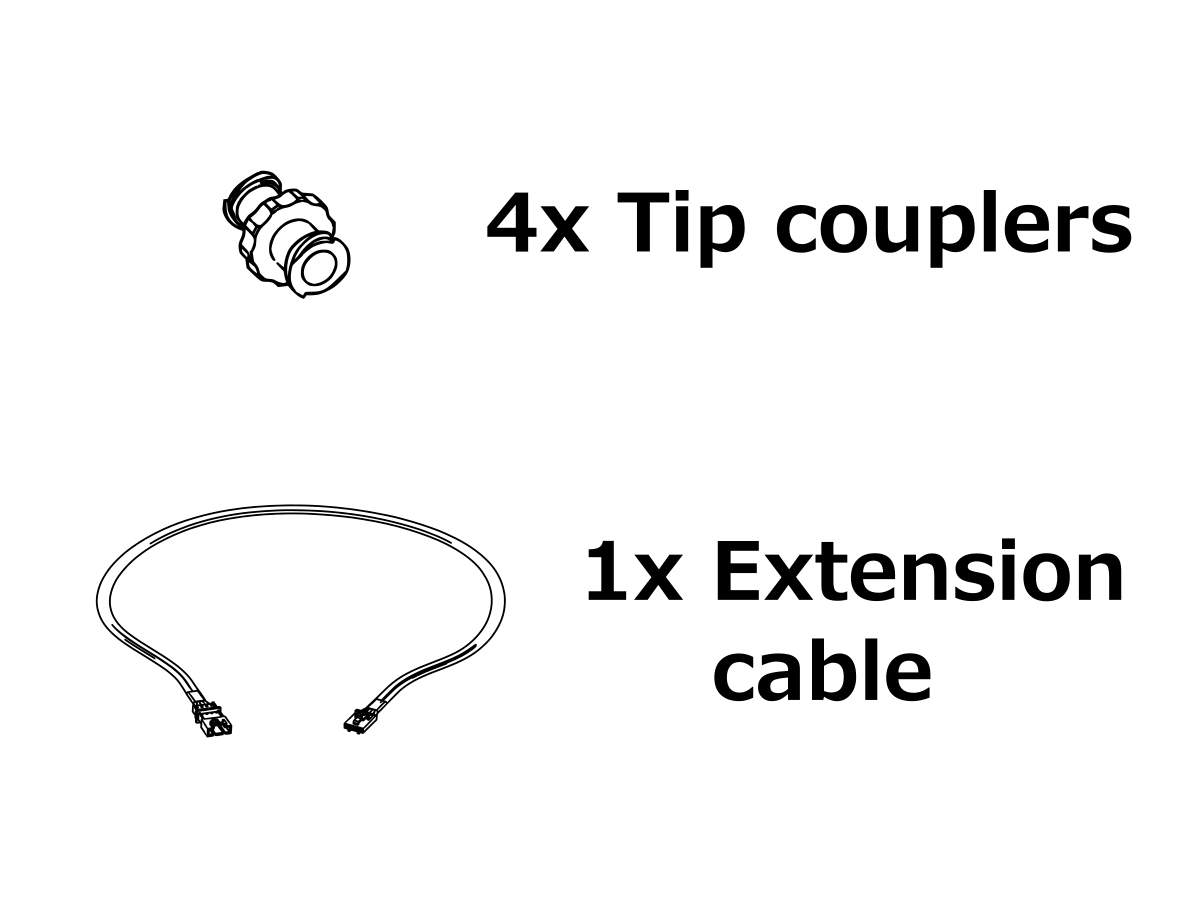

– 4x Couplers.

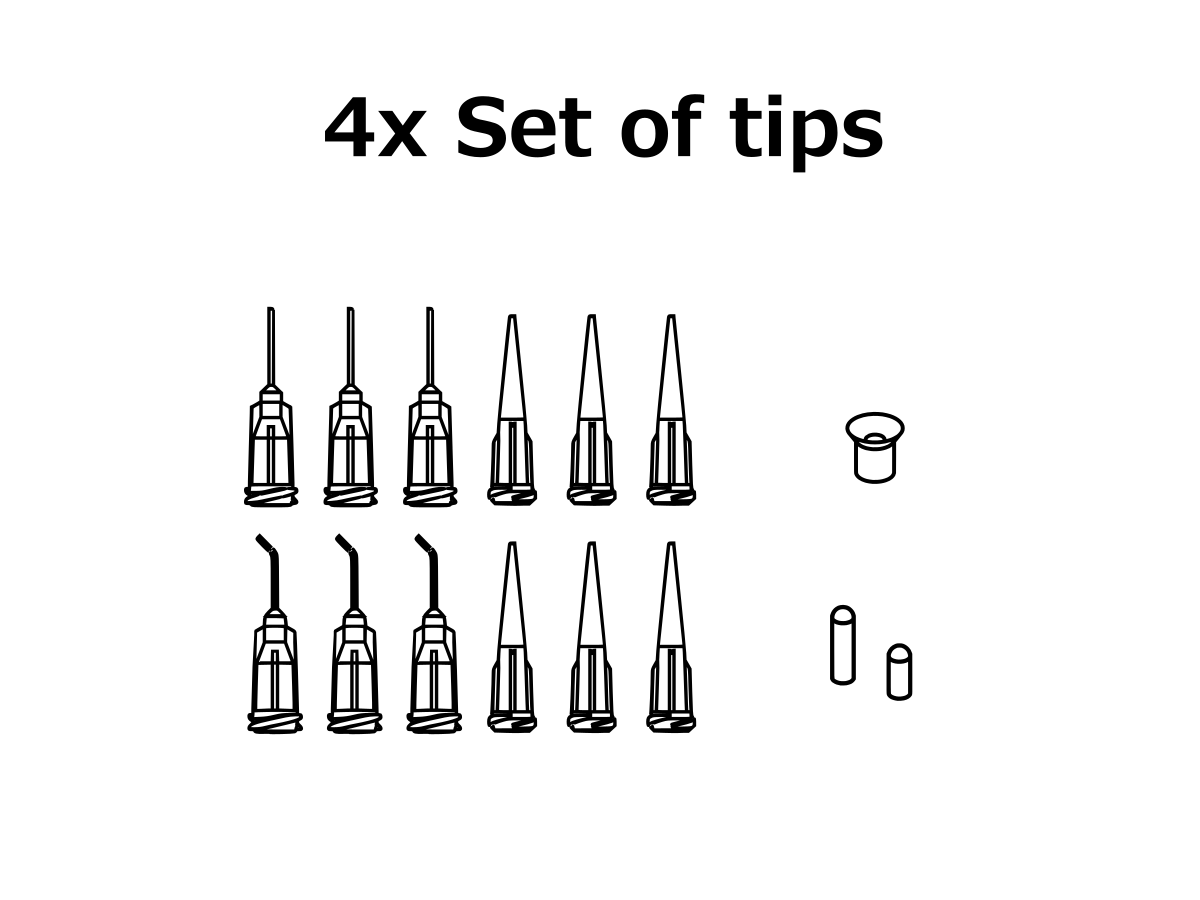

– 4x Set of tips.

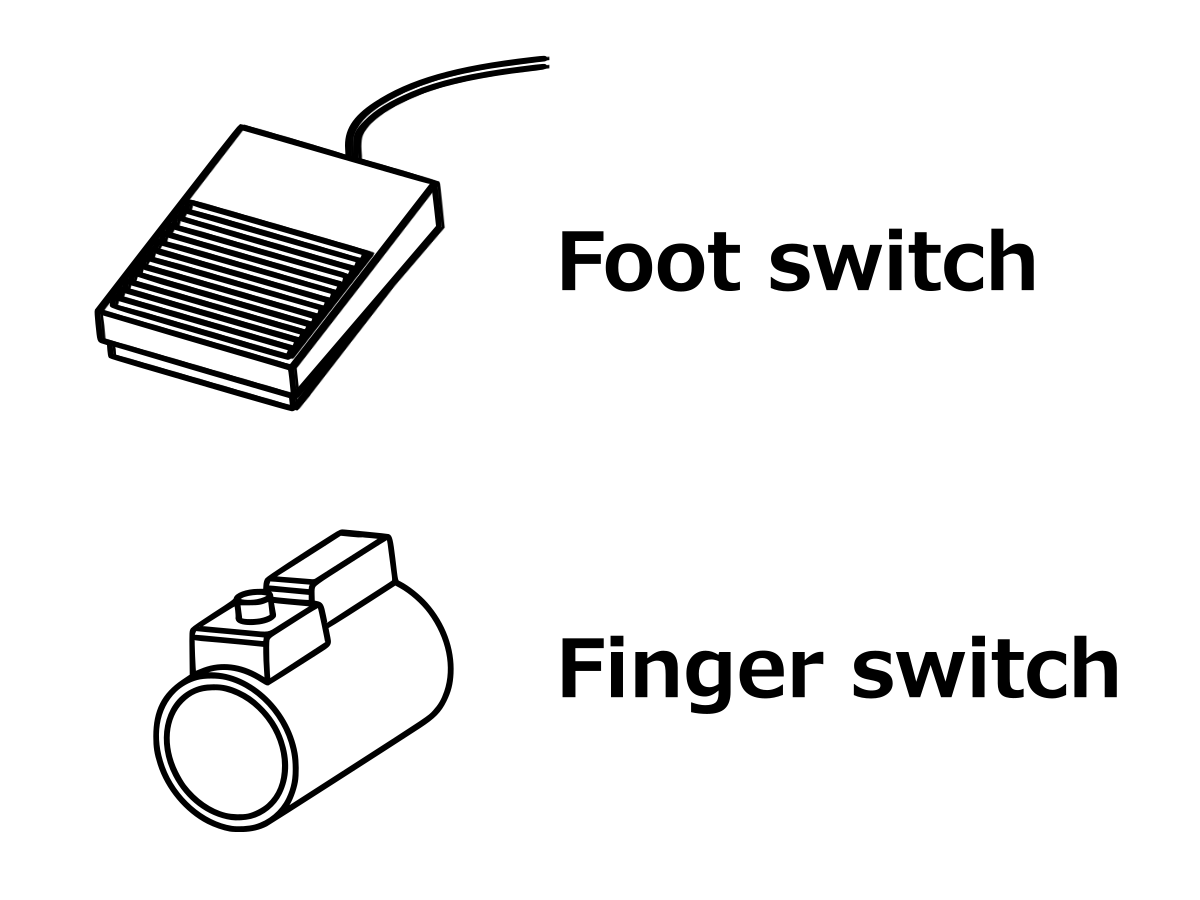

– Foot switch.
– Finger switch.
– Extension cable 50cm (20″)
Price: $283 $257
Deluxe kit
– Controller with motor.
– 12x Syringes each with top, bottom caps.
– 8x Piston holders.
– 12x White pistons.
– 4x Red pistons.
– 8x Couplers.
– 6x Set of tips.
– Foot switch.
– Finger switch.
– 2x Extension cables 50cm (20″)
Price: $341 $291
Note: Prices in USD, do not include shipping, VAT or import duties (if applicable).
Accessories description
Used for light sensitive materials like UV-cured adhesives and resins. Standard clear barrels can be used for anything else.
A hand activated switch that mounts on the barrel and connects to the external trigger port.
Allows for better control and comfort when operating the dispenser for longer periods of time.
Note: If no external switch is used, the Start button on the controller performs the same funciton.
Holds the piston in place for the leadscrew to move it up and down.
Pistons can be cleaned and reused multiple times or replaced entirely by unscrewing the brass nut.
Extend the standard motor lead length by an additional 50cm for a total of 100cm (39.3”) with 1x extension or 150cm (59”) with 2x extensions. Useful for remote applications where the controller might be a large distance away from the syringe itself.
Offer a slightly tighter fit than standard white pistons. Recommended when using the pick & place mode and for very watery liquids.
Each set includes 2 rubber plugs and 1 suction cup accessory and 12 tips:
– 2x Conical tip 18ga (green)
– 2x Conical tip 20ga (pink)
– 2x Conical tip 22ga (blue)
– 1x Straight stainless steel 14ga (olive)
– 1x 45° angle stainless steel 14ga (olive)
– 1x Straight stainless steel 20ga (pink)
– 1x 45° angle stainless steel 20ga (pink)
– 1x Straight stainless steel 22ga (blue)
– 1x 45° angle stainless steel 22ga (blue)
